OptiPump Controllers

OptiPump Controllers are not designed with a one-size-fits-all approach. AID has the expertise to deliver both custom and standard controllers for each unique field application. Regardless of your industry our cutting-edge control, diagnostic and monitoring capabilities can help you manage your assets and improve performance.

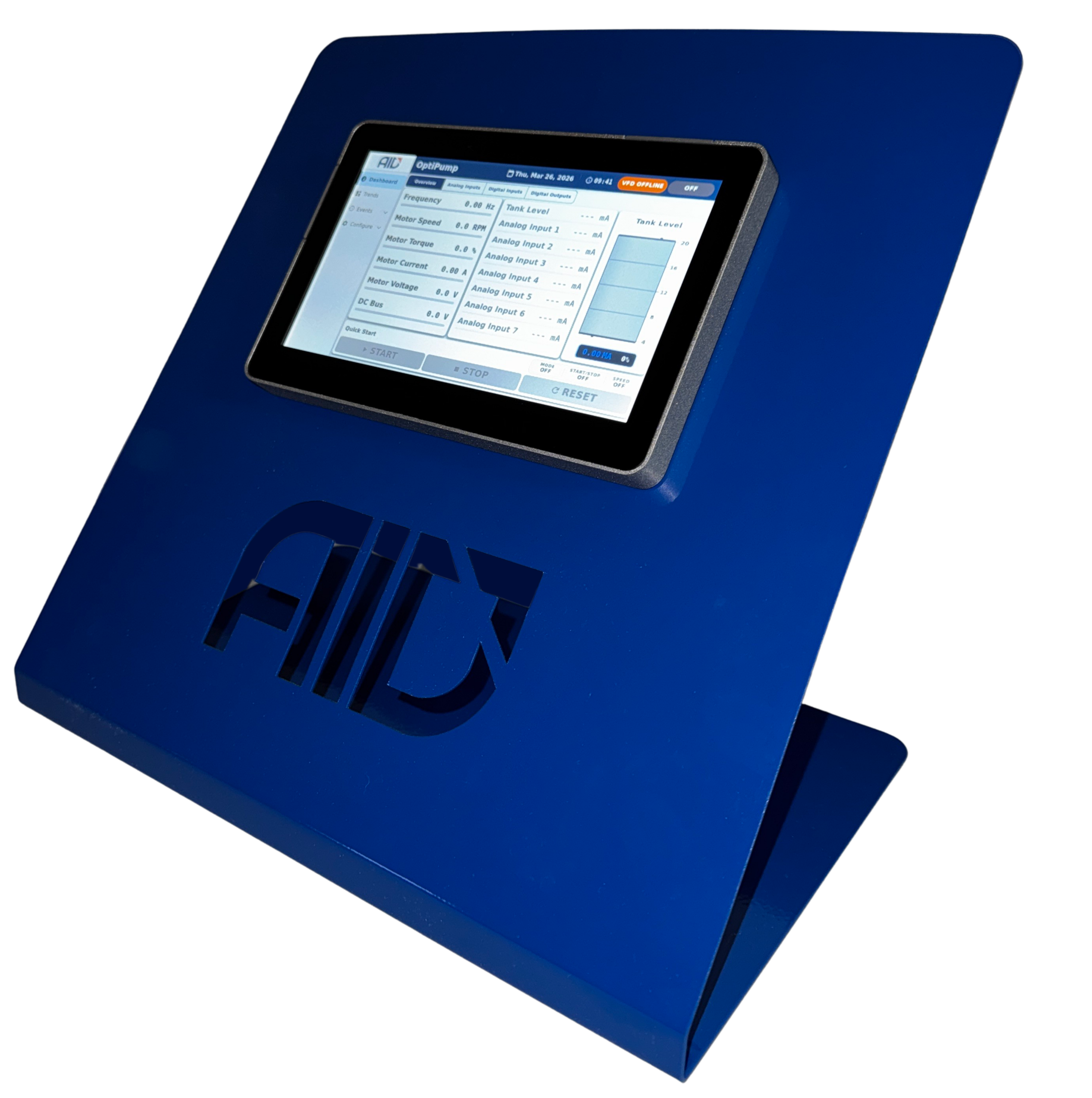

AID Controller

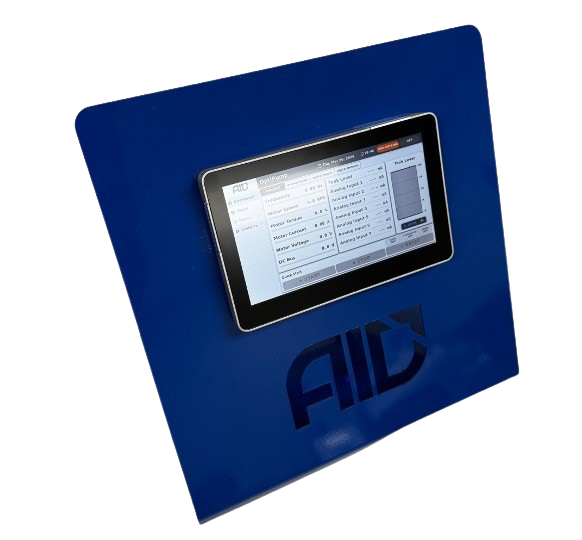

Picture1-removebg

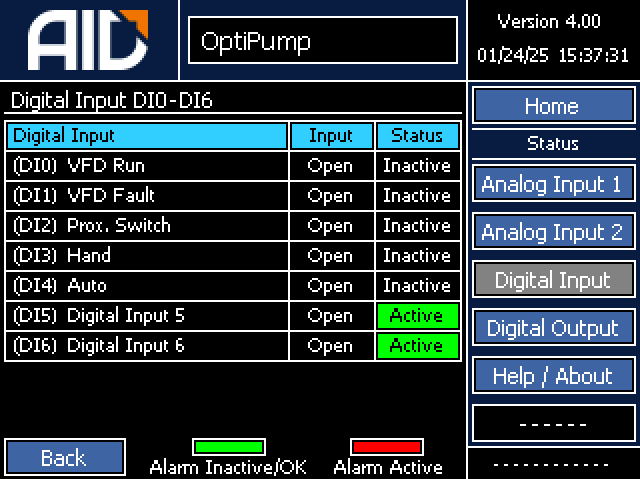

 With fast setup and effortless adjustments, OptiPump adapts to quickly changing job sites. And with a series of pre-loaded pump profiles, you can easily select your pump and preferred profile, minimizing on-site settings and configurations. The screenshots above give a high-level overview of a few key functions:

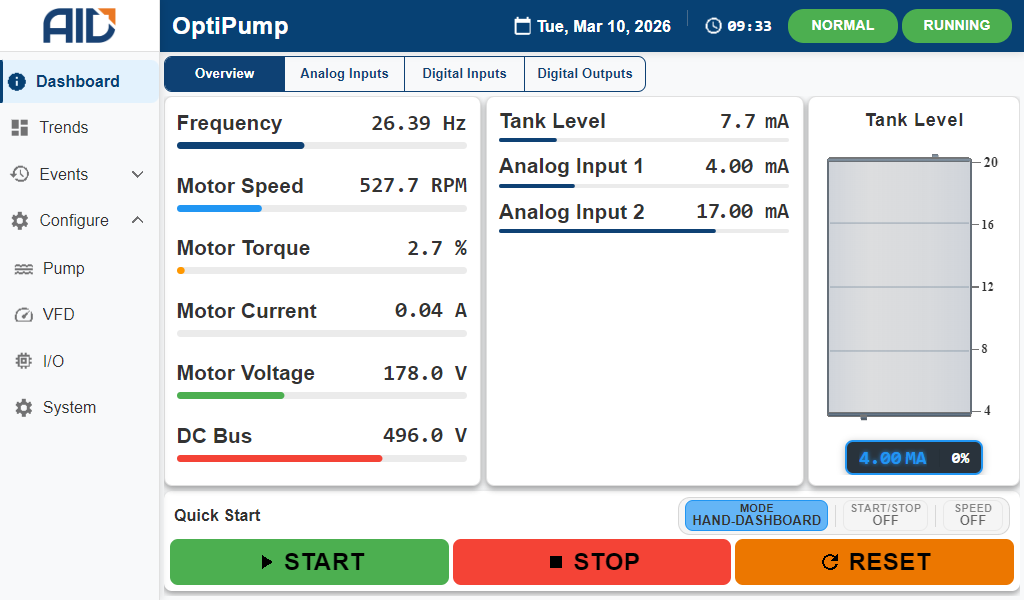

  • Home Screen – With a focus on convenience and efficiency, the 7-inch high-resolution touch screen provides an overview of the VFD and pump operation.

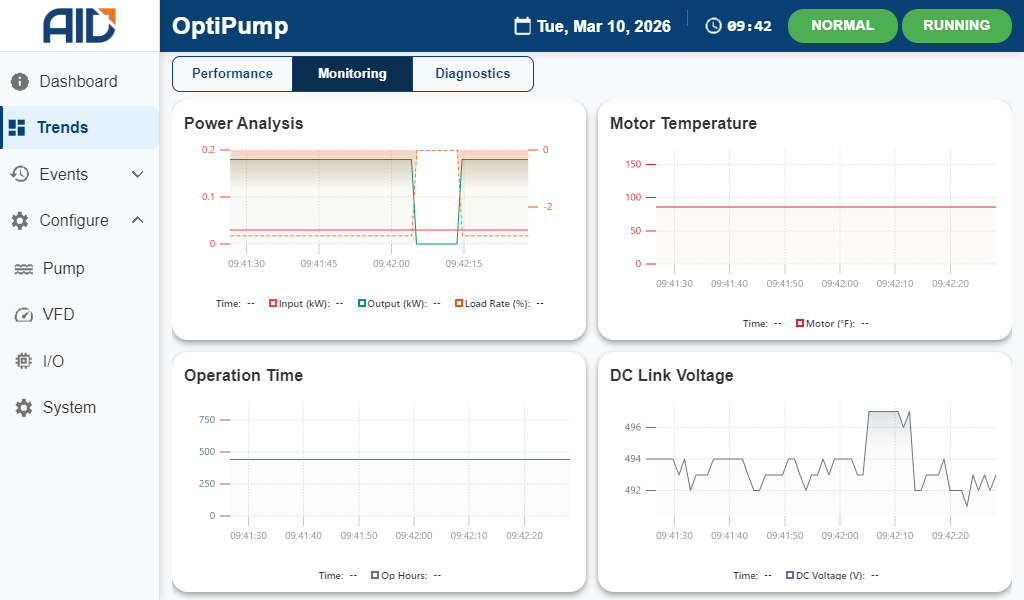

  • Dashboard – Easy-to-read charts and graphs provide extensive diagnostic information and optimization insights, while also reducing the time required for troubleshooting.

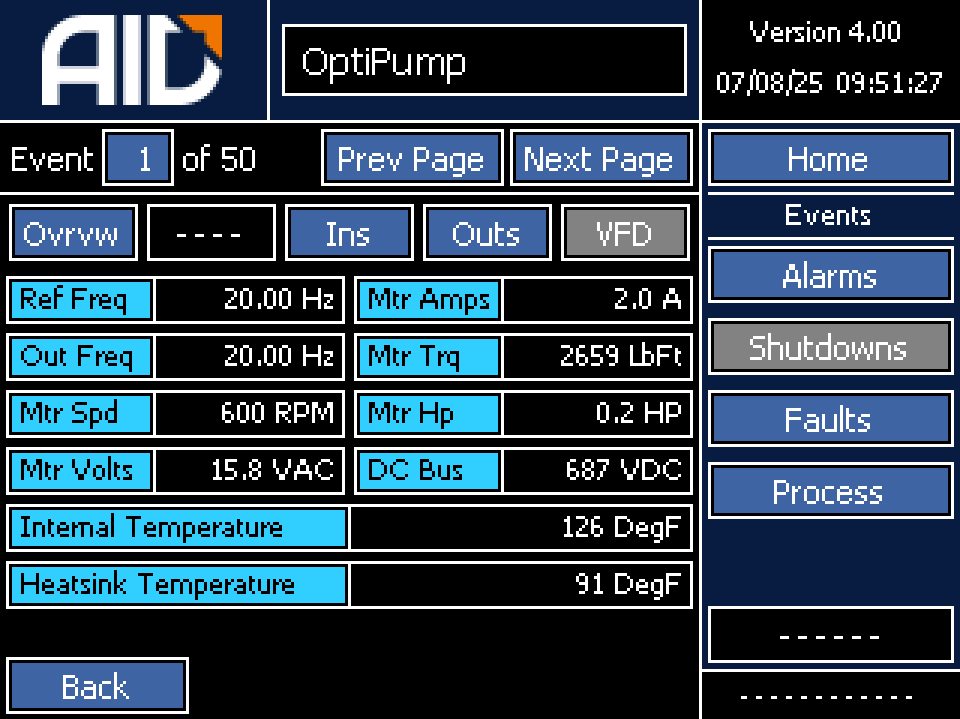

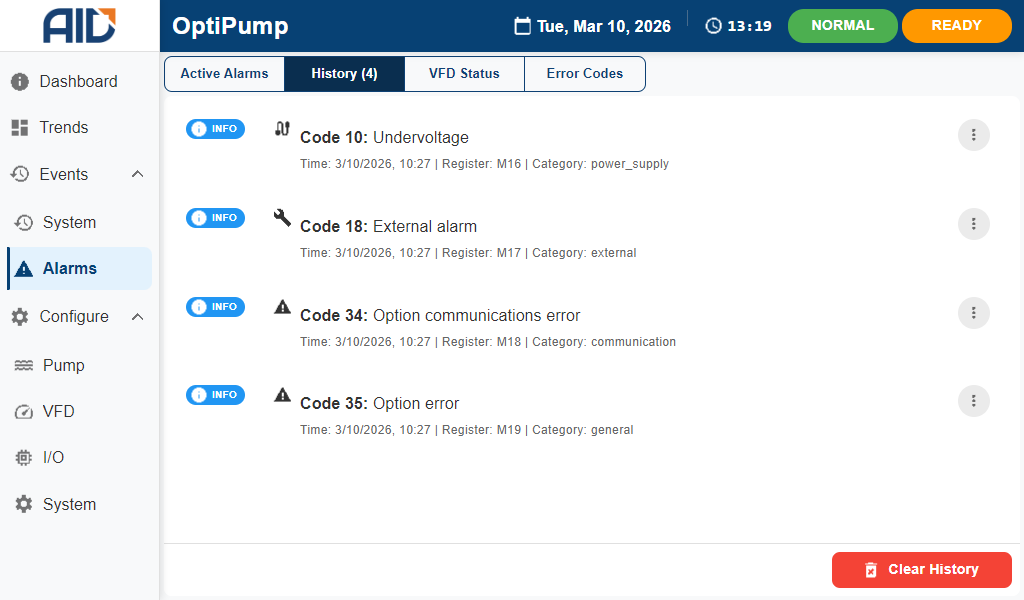

  • Alarms & Events – Detailed snapshots of alarm, shutdown, and fault events provides critical information for diagnosing intermittent application issues and tracking changes.

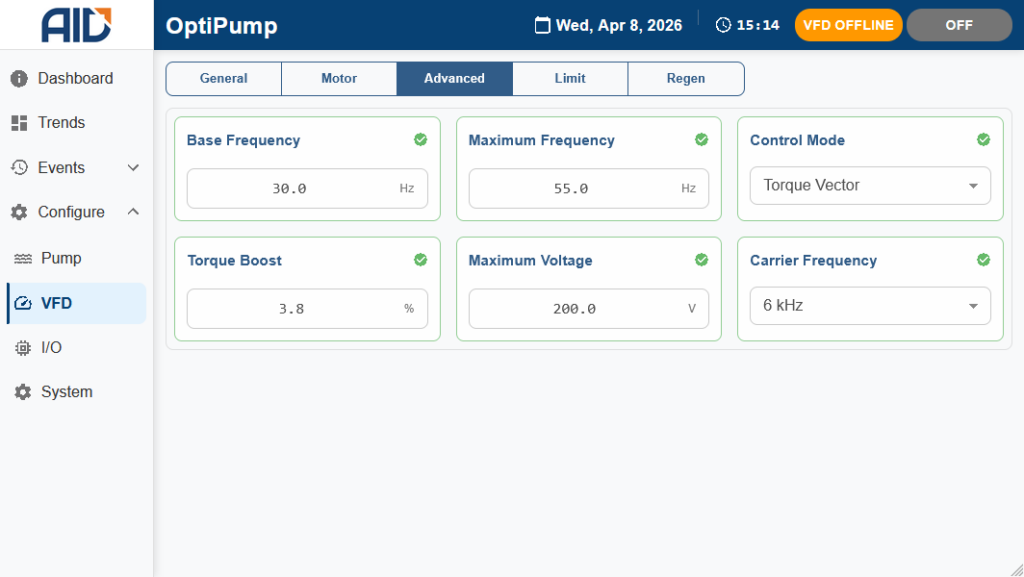

  • VFD Configuration – Configure both pump settings and VFD settings on the controller. Everything you need is available on one simple and easy to use interface.
APPLICATIONS & INDUSTRIES
A passion for excellence.

AID’s focus on advanced engineering and design ensures our controllers will perform at the highest level. With a robust set of reports and configuration options, OptiPump controllers provide a new level of visibility and control at your job site.

Oil & Gas
Data Centers & HVAC
Water Utilities
Specialty Rental Equipment
Power Solutions
Agriculture & Irrigation
Mining & Aggregates
Construction
  • ESP Drives – Our ESP controllers are perfect for gassy wells, with traditional gas lock recovery mode built in. And with AID’s unique gas lock avoidance control, you can prevent gas lock all together.
  • HPS Drives – HPS controllers include a full assortment of shutdown inputs, back-pressure valve control, plus a full series of additional controls tailored for your HPS site.
  • Rod Lift Drives – The OptiPump Rod Lift controller now creates a full dynacard. Utilizing both surface and downhole cards, the OptiPump Rod Lift controller provides advanced insight in critical well operation and performance.
  • Jet Pump Drives – Jet Pump controllers can monitor and control pump speed, discharge pressure, flowrate and other key performance metrics.
  • Progressive Cavity Drives – Our Progressive Cavity controllers offer a full assortment of shutdown inputs, as well as back-pressure valve control and a full assortment of other control options.
  • MobileDuty Drives – The user-friendly interface found on our MobileDuty controllers supports a streamlined setup process, plus quick and easy adjustments as the environments change.
  • 1.8 GHZ Quad-Core Cortex A55 Processor
  • 4GB LPDDR4 RAM
  • 32GB eMMC NAND Flash
  • 1024×600 Anti-Glare/anti-UV Multi-touch Capacitive Touch Screen
  • 1 Gb Ethernet LAN + Wifi Connectivity
  • 2 RS232/RS485 Serial Ports
  • Linux-based operating system
  • CE, FCC, and Class A Compliant
  • Modbus RTU and TCP support is available when the optional DriveLynx SCADA is included
DriveDefender Harmonic Filters Case Study
OptiPump Controllers Case Study

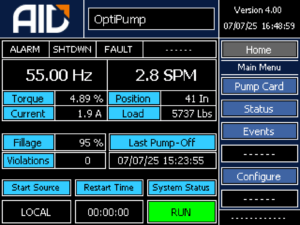

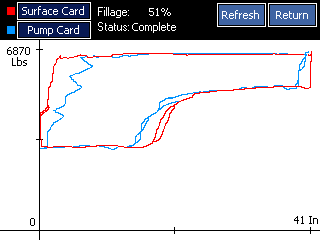

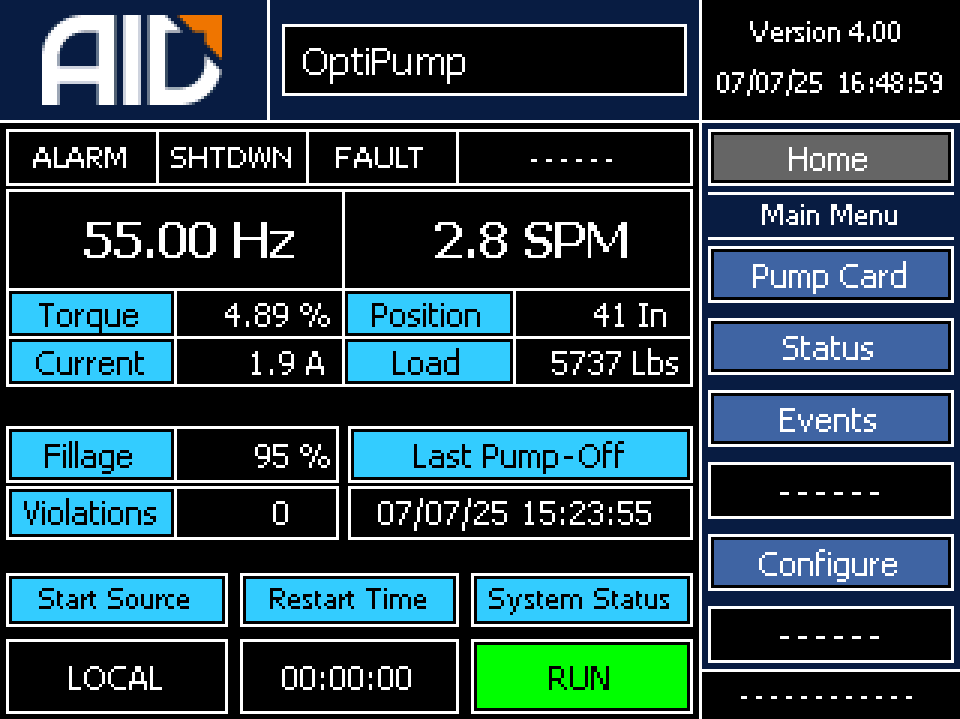

Our next generation rod lift controller leverages a load cell and inclinometer to generate a real time Dynacard, giving visibility into well performance. Unlike complex, high-cost alternatives, this solutions delivers the essential insights needed to monitor pump efficiencies and optimize production. Simplified diagnostics. Lowered costs. Improved uptime.

Key Features & Benefits:

  • The combination of an Inclinometer(included) and load cell(sold separately) provides accurate, real-time measurement data.
  • Diagnostics for pump stroke performance, aid in identifying down-hole issues without stopping the system.
  • Enables optimization of pump fillage and stroke data specific to unique well dynamics.
  • Keeps marginal wells pumping longer between full stops for a higher cut of oil per barrel of fluid.
  • Timed or manual restart options allow for safe and efficient recovery from common operating interruptions or power quality issues.
  • The VFD package has the ability to save electricity and correctly operate on many rod lift pumps without resistors. (resistor options available)
  • Supports SCADA connections, Modbus TCP, and Modbus RTU/serial.
  • Multiple Operation Modes:  1) Pump-Off Fixed Speed – Constant speed with Dynacard Pump-Off Control.  2) Pump-Off Speed Control – Maximize runtime by slowing down based on Dynacard for a higher cut of oil.  3) Time clock function for basic operation.
